Decarbonising: don’t throw the baby out with the bathwater

A recent study by Frontier Economics[i] highlights four reasons why gas infrastructure will continue to have a strong future in supplying energy in a decarbonising world.

While the global focus of decarbonisation is on renewable electricity, there is growing recognition that more than just electricity will be needed to decarbonise the mobility and heat sectors, meaning a systems approach will be required. As part of this systems approach, gas infrastructure will continue to play a major role in supplying energy.

The study focusses on the role and potential of gas infrastructure in a climate-neutral Europe. The study considers three scenarios (Figure 1) to achieve the 2050 emissions reduction targets:

  • All-electric – this scenario assumes all the heat load and mobility is electrified using renewable electricity only.
  • All-electric plus gas storage – this scenario assumes all the heat load and mobility is electrified but that gas (hydrogen or biogas) will be used in electricity generation.
  • Electricity and gas infrastructure – this scenario assumes that both the electricity and gas grids will continue to provide services to homes, businesses and mobility and that all the gas used will be renewable.

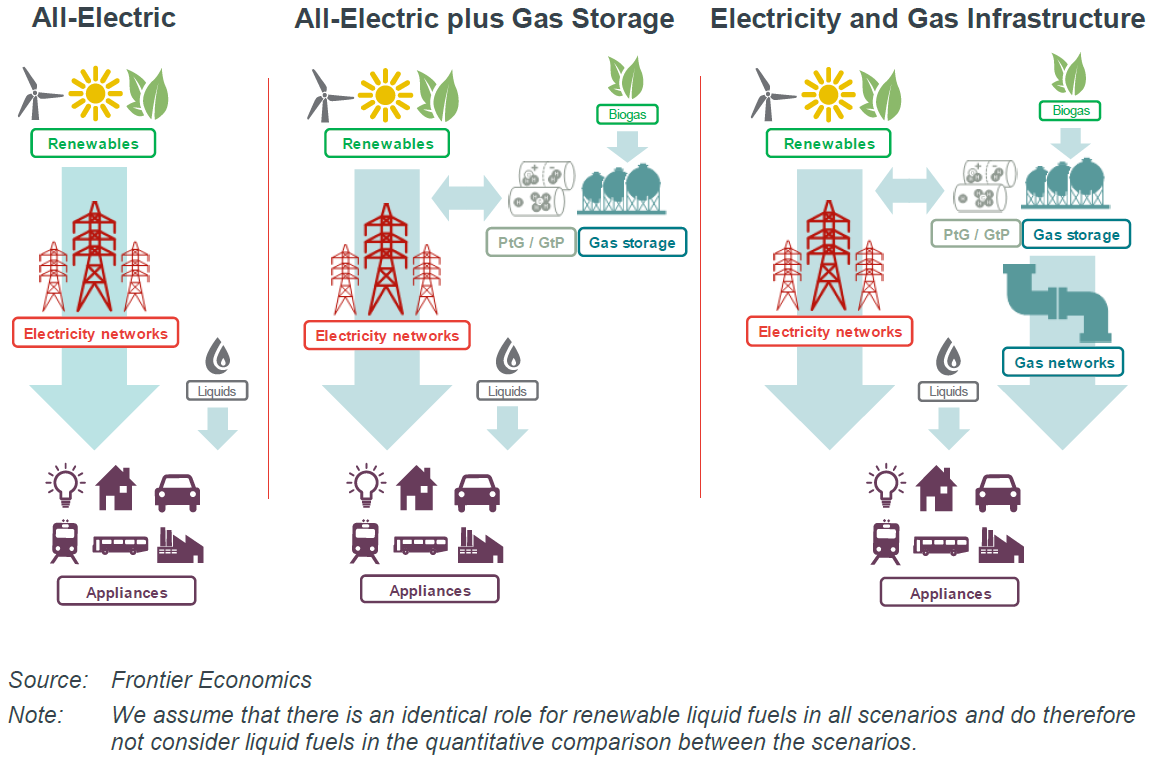

Figure 1: Summary of scenarios (Source: Frontier Economics (2019), Figure 2).

1.      Seasonal energy demand

European gas infrastructure has long been in place to help meet the seasonal heating demand in colder months.

Monthly gas and electricity consumption is shown in Figure 2. The figure illustrates that gas provides more than twice the energy in winter than electricity. Furthermore, the electricity system peaks in winter so that any switching from gas to electricity will require a significant upgrade of the electricity grid.

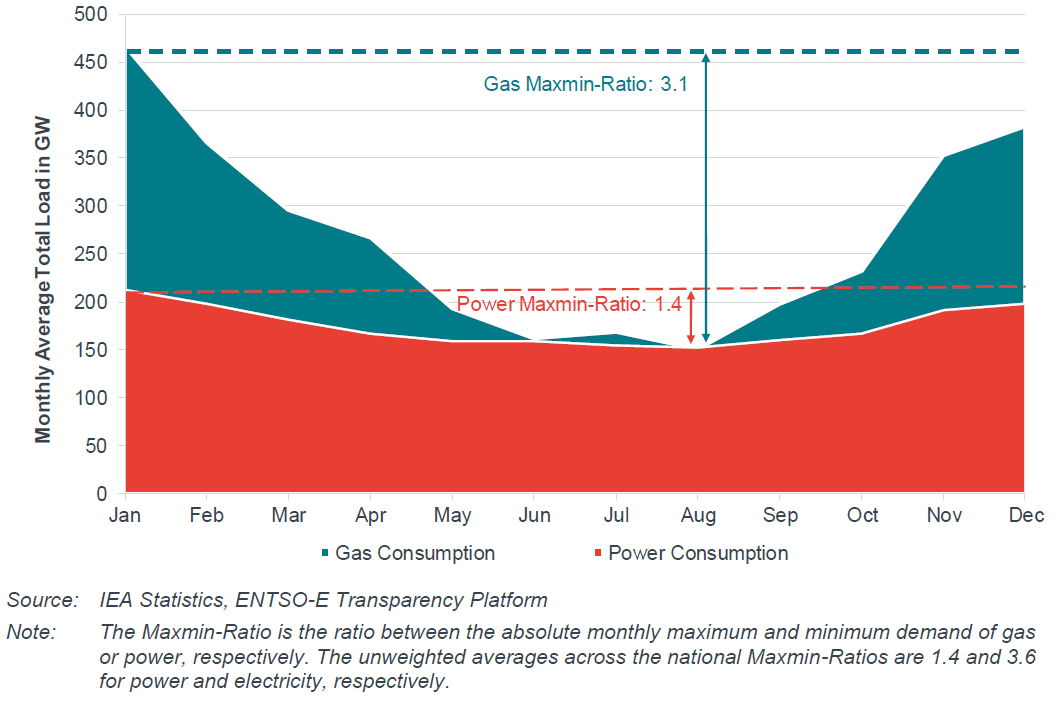

Figure 2: Seasonal energy demand (Source: Frontier Economics (2019), Figure 58).

2.     New renewable generation

If the final energy demand, including heat, mobility and traditional electricity were all converted to renewable electricity, a twenty-fold increase in renewable electricity generation would be required (Figure 3).

It is uncertain whether a reduction in final energy demand is possible.

Most of this increase would fall on solar PV and wind, as hydro-power is mostly built out in Europe. It has taken Europe close to 30 years to get to the current levels of renewables energy. Installing 20 times the same capacity seems exceptionally challenging.

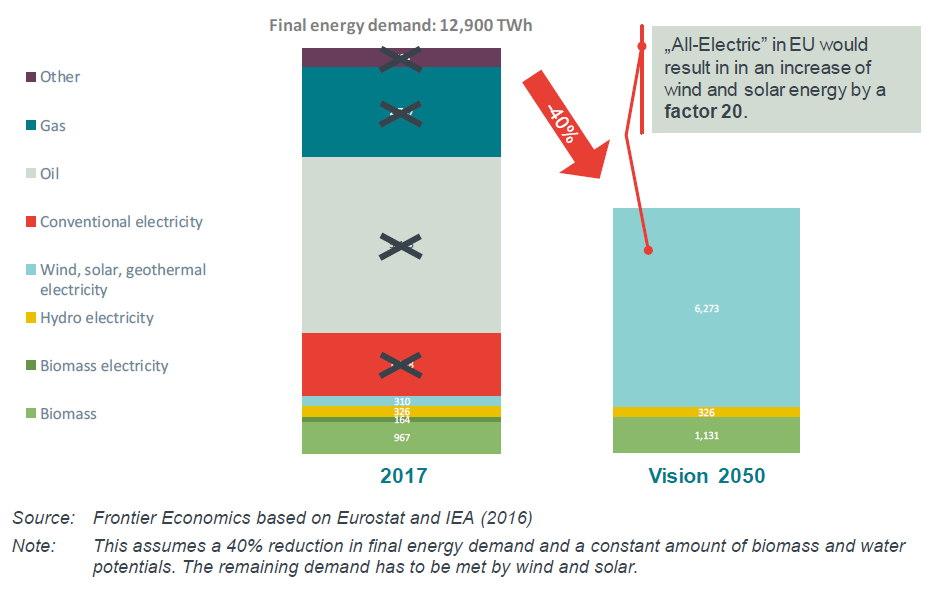

Figure 3: Increase in renewable generation (Source: Frontier Economics (2019), Figure 11).

3.     Connecting energy supply and demand

Europe has many gas and electricity interconnectors between countries (Figure 4). In many cases, these interconnectors allow countries such as Denmark to have very high levels of renewable generation, as it has strong interconnections with its neighbours.

The amount of energy transported via gas is at least an order of magnitude higher than carried by the electrical grid. For this to be replaced and possibly expanded to connect the new generation mentioned above would require massive investment in new infrastructure.

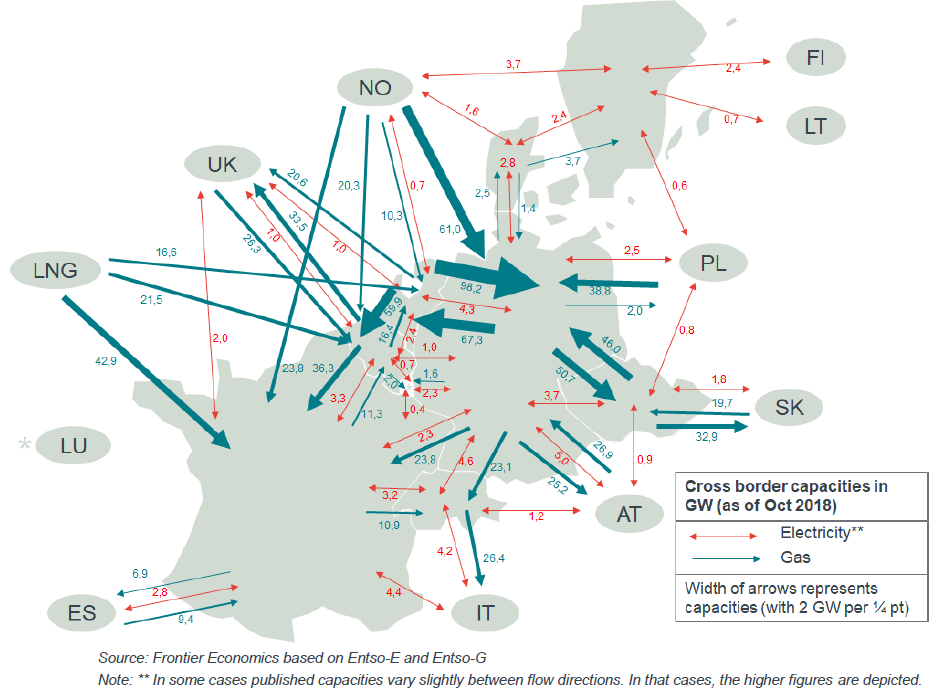

Figure 4: Comparison of gas and electricity cross border energy capacity (Source: Frontier Economics (2019), Figure 14).

Importantly, gas pipelines are underground and out of sight. They also only occupy a relatively narrow easement of 10 to 20 metres. Transporting the same amount of energy as electricity would require many new electricity transmission lines.

As an example, the OPAL pipeline transports around 42 GW of gas with an easement of 20 metres. To replace this with electricity transmission would require an easement of almost one kilometre.

It makes no sense to replace pipeline infrastructure when the fuel inside the pipeline can be decarbonised.

4.    Energy storage

The seasonal heating load can only be met with energy storage, which is where gas is stored in underground caverns and extracted during the colder months.

Gas infrastructure provides about 1,000 times more energy storage than electricity infrastructure (Figure 5), and this is essential to meet that winter heating demand.

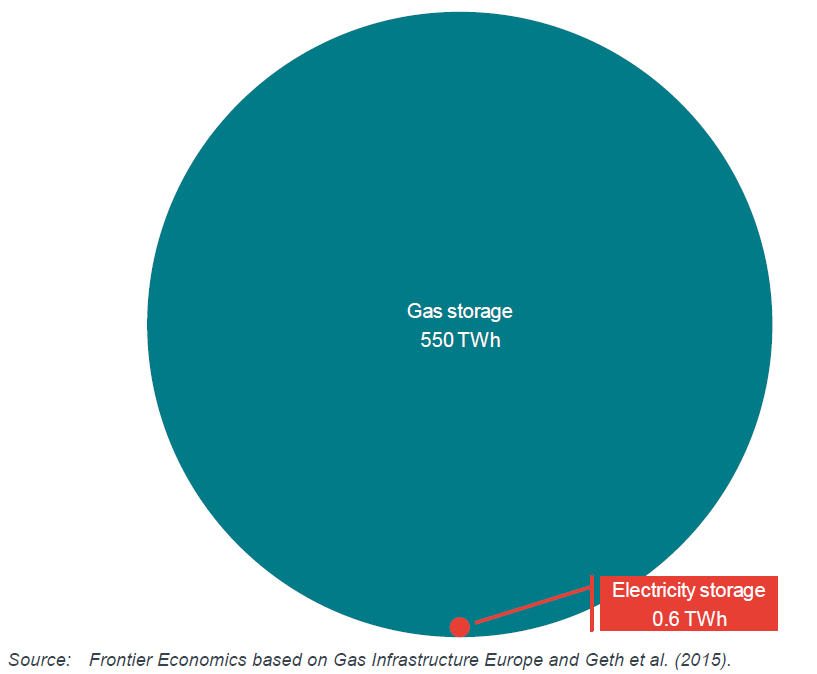

Figure 5: Comparison of gas and electricity storage capacity (Source: Frontier Economics (2019), Figure 16).

Compared to battery storage, the cost of gas storage is also orders of magnitude lower, due to its simplicity and massive energy storage capacity.

The four reasons outlined for gas infrastructure continuing to be part of the energy supply mix form a compelling argument.

The cost savings associated with continuing to use gas infrastructure make it even more compelling.

Across the eight countries studied, continuing to use gas infrastructure results in estimated annual savings of between €29.5 and €48.6 (AUD48 to AUD79) billion per year from 2050 onwards (Figure 6). This still achieves the same emission target of becoming climate neutral but at a much-reduced cost.

Bill savings differ between countries but range between €146 and €241 (AUD237 to AUD392) per capita per year.

A summary of the outcomes for each country is shown in the table below.

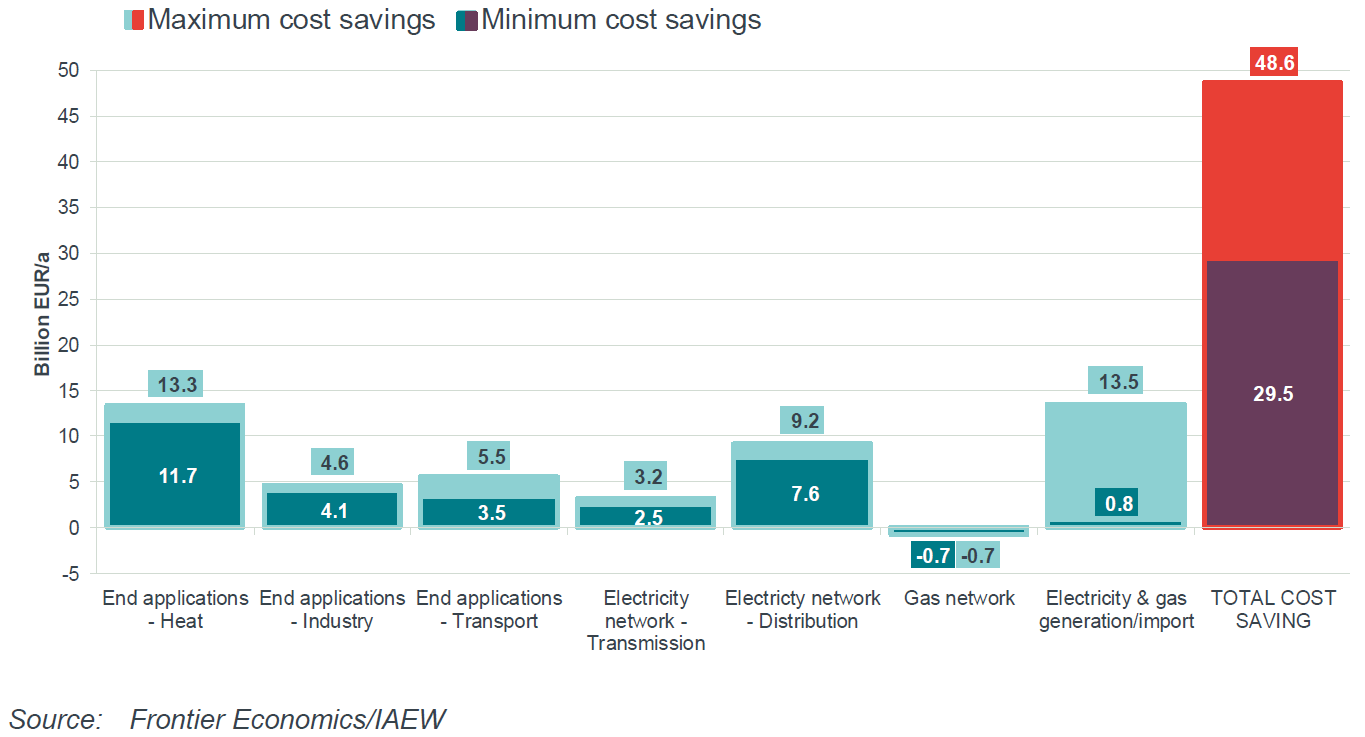

Figure 6: Potential cost savings by utilising gas infrastructure (Source: Frontier Economics (2019), Figure 3).

Similarly to the EU, Australia has a large amount of gas infrastructure that helps provide heating during the colder winter months.

It is well worth considering the economic value of utilising this infrastructure to decarbonise the economy rather than adopt an “electrify-everything” approach.

COUNTRY 2050 TARGET ELECTRIFICATION CHALLENGES RENEWABLE GAS SOURCE COST SAVINGS FROM USING GAS NETWORKS
Belgium 80 – 95%
  • Seasonal heat demand requiring extra power generation or storage
  • Nuclear phase-out
  • Limited renewable and hydro capacity
Imports Reduce system costs by €1.1 to 2.5 billion by 2050, lower-cost from cheaper appliances and avoided investment in electricity.
Czech Republic Not yet set
  • Mainly fossil fuel sector
  • Require extensive amount of seasonal backup
  • Recent experiences suggest opposition to additional electricity infrastructure.
Production of hydrogen from gas

Key location for a pan EU hydrogen transmission grid

Reduce systems costs by €1.5 to 3.0 billion by 2050. Avoidance of capital-intensive heating appliances and avoidance of electrical grid expansion.
Denmark Net-zero by 2050
  • Connecting offshore wind to electricity demand centres
Biomethane, power to gas, import blue hydrogen from Germany or Norway Reduce systems cost by €500m to 1.1 billion by 2050.
France Climate neutrality by 2050
  • Seasonality for heating from electricity already high
  • Nuclear closing down
  • Limited hydro
Biomethane, hydrogen and synthetic methane Reduce system cost by €6.5 to €14.5 billion by 2050
Germany 80 – 95%
  • Peak demand could more than double
  • Wind resources continue to be in the north with demand mostly in the south
Power to gas

Biogas

Significant interconnection to EU for renewable gas imports

As much as €20 billion pa by 2050
Netherlands 95%
  • Seasonal energy
  • No hydro
Imported biomethane

Hydrogen (offshore wind or offshore CO2 storage)

€3.6 to 5.5 billion by 2050
Switzerland 70 – 85%
  • Nuclear phase-out
  • Require an increase in electricity and more interconnection
Biogas

Imported biogas or synthetic gas

€1.3 to 1.9 billion by 2050
TOTAL       EUR 34.5 to 48.5 bn pa by 2050



References:

[i] Frontier Economics (2019), The Value of Gas Infrastructure in a Climate-Neutral Europe, accessed from: https://www.frontier-economics.com/media/3120/value-of-gas-infrastructure-report.pdf
